Name: ALLEN&HEATH QU-24 เครื่องผสมสัญญาณเสียง ดิจิตอล มิกเซอร์ 24 ชาแนล - Soundbro
Brand: Allen&Heath
Price: 137550.00 THB
Availability: InStock

Description

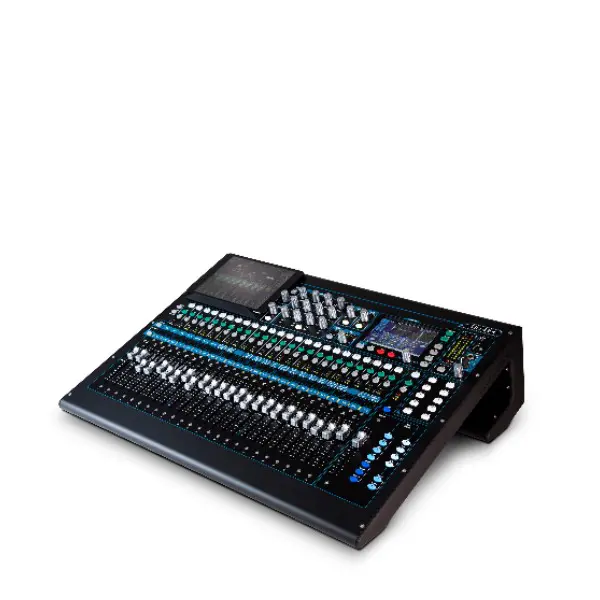

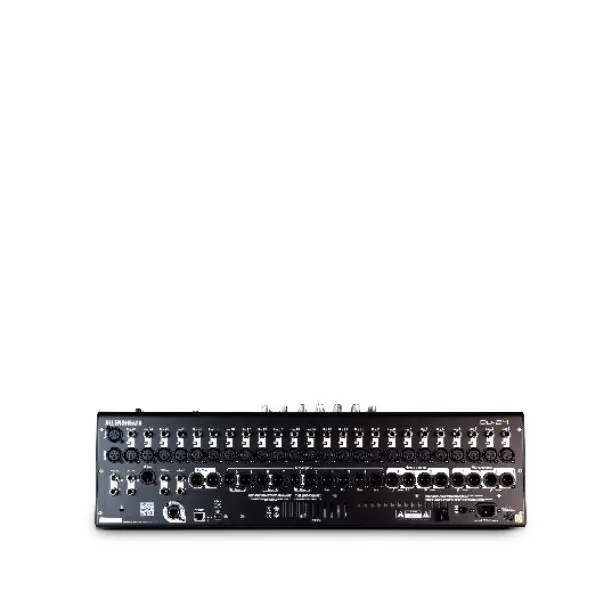

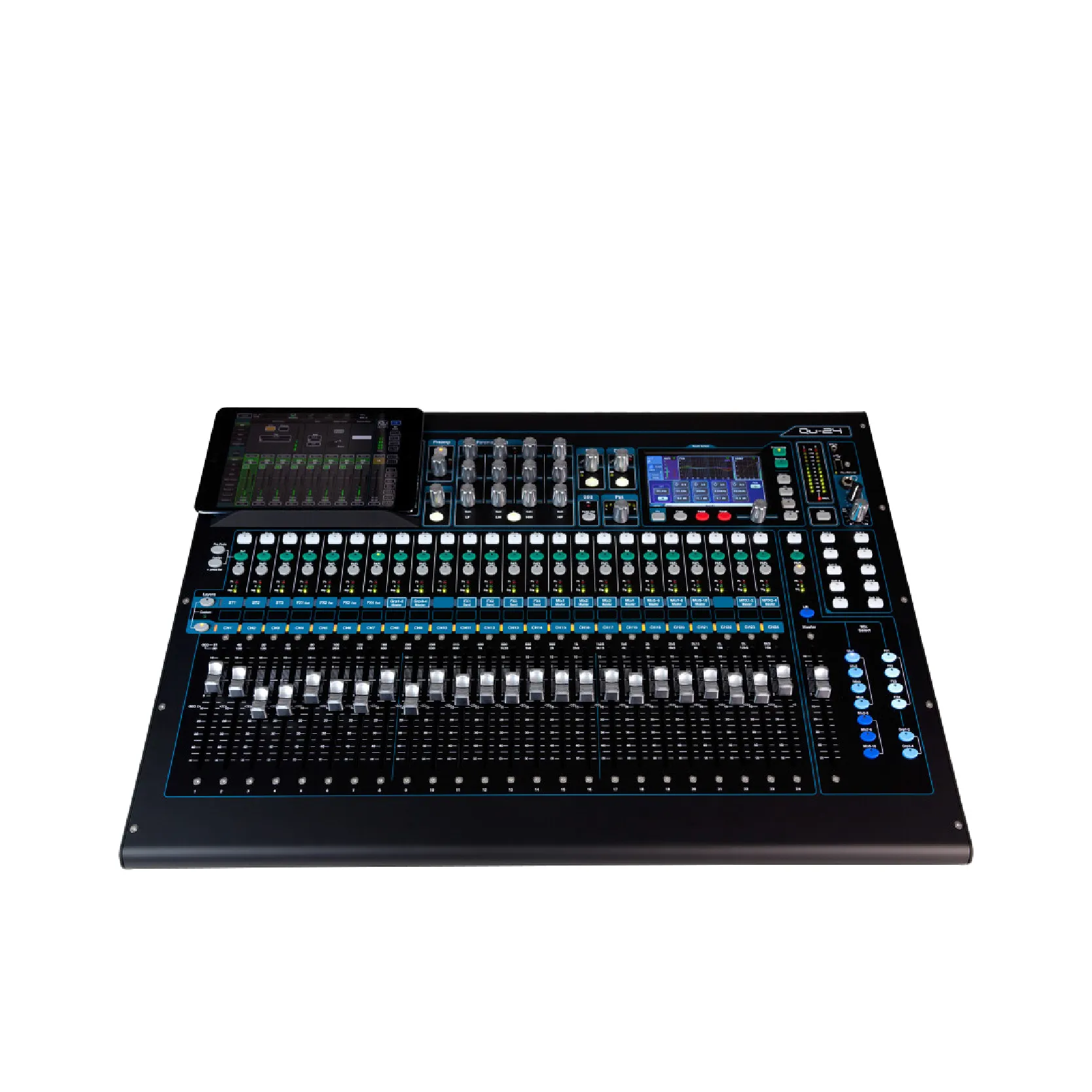

ALLEN&HEATH QU-24

DIGITAL MIXING RESHAPED

คุณสมบัติ

ALLEN&HEATH QU-24

24 Mono Mic/Line Inputs (TRS + XLR)
Recallable AnaLOGIQ^TM Preamps3 Stereo Inputs (TRS)
20 Mix Outputs (XLR)
2 Stereo Groups (switchable to Mix mode)
Up to 9 Monitor Mixes (4 mono + 5 stereo)
2 Stereo Matrix Outs
4 FX Engines
4 dedicated FX Sends / Returns
4 Mute Groups
4 DCA Groups
AES Digital Out
32×30 USB Audio Interface
dSNAKE^TM Remote Audio Port
25 Motor Faders
800×480 Touchscreen
10 Soft Keys
Trim, polarity, HPF, gate, insert, 4-band PEQ, compressor, delay on all Inputs
Insert, 4-band PEQ, 1/3 octave GEQ, compressor, delay on all Outputs
Automatic Mic Mixer
Channel Ducker on all inputs
ProFactory Mic Presets
RackFX Library
Built-in Signal Generator
RTA with Peak Band indication
Spectrogram to aid feedback elimination and room acoustics
Qu-Drive Direct Multitrack Recording / Playback on USB drives
DAW MIDI Control
Qu-Pad iPad App
Qu-You iPhone / Android personal monitoring app
Qu-Control customisable iOS app for simple wireless control
Compatible with ME Personal Mixing System
High contrast metallic finish controls, matching premium GLD Chrome series

AnalogiQ Preamps

Qu-24 features twenty-four AnalogiQTM digitally controlled preamps with advanced zero-crossing detection and a padless 1dB-step gain stage, which have been closely allied to the DSP for optimal gain accuracy and audio transparency. The analogue signal is captured by high-class, low latency 24bit analogue to digital converters, and are matched to 24bit digital to analogue converters to deliver the required high quality output. The AnalogiQTM preamp design has been refined to offer superb transparency, minimal distortion and an ultra-low noise floor, with a warm, musical sound that is missing from some digital consoles.

One Channel / One Fader

Qu-24 has a fader per mono input channel and fewer fader layers for simpler, quicker workflow. Some digital mixers don’t offer a fader per physical input, meaning you have to access an additional fader layer to control these channels. This can be confusing and time consuming. Because every mic input is presented on its own fader for fast, easy control, this makes Qu-24 the perfect mixer for first-time converts from analogue to digital and those not comfortable working with several layers of faders.

Total Recall

True digital mixing is about being able to save and recall Scenes (snapshots) at the press of a button. Qu can store up to 100 full Scenes for recall and Channels or Mixes can be made Safe from being overwritten. Qu-24 features 25 motorized ALPS faders, 24 allow instant access to all input channels and masters over 2 layers, and a dedicated master fader dynamically follows the Mix selection. A third User-defined Custom layer is available for ad-hoc strip layout, where any combination of Inputs, FX Sends, FX Returns, DCA’s and Mix masters can be assigned.

More Mixes, More Flexibility

GROUPS

Qu-24 provides 2 stereo Groups which can be used as subgroups to the main LR mix for group level and processing, for example to buss-compress an entire drum kit, or to tame multiple lavalier mics with a single graphic EQ. Groups can also be switched to Mix mode to provide additional outputs for monitor mixes.
