Description

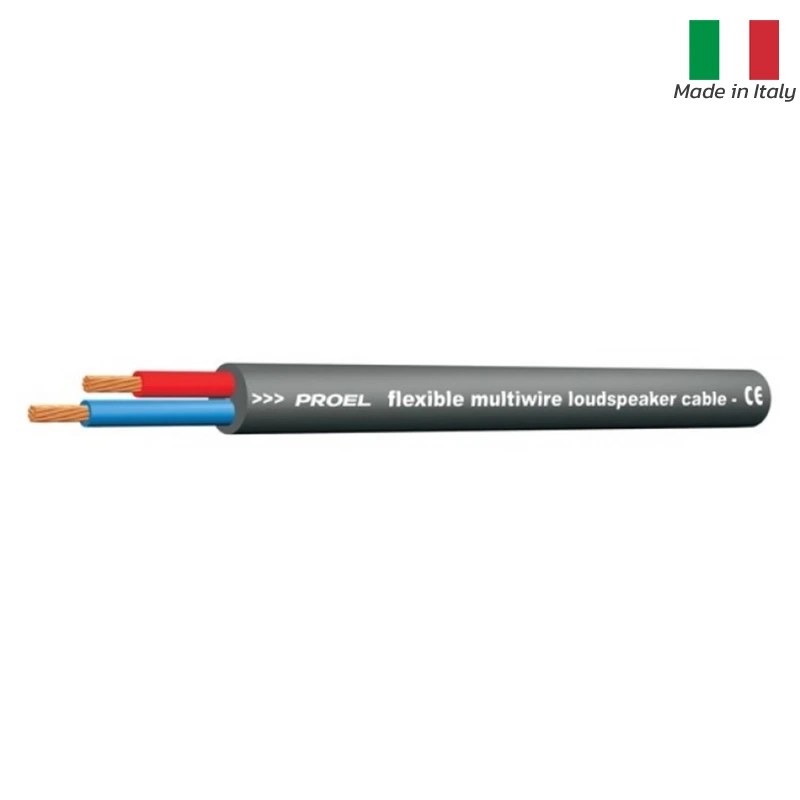

PROEL HPC620BK / 100M
Loudspeaker Cable
- Application fields: Passive speaker connections / sound reinforcement / studio installation / live
- Conductors: Bare copper 16 AWG = 30×0,25 mm
- Lay up: two conductors twisted in short concentric layers
- Insulation: flexible PVC 2,70 mm
- Jacket: Ultra – Flexible PVC – 60 Shore
- Overall diameter: 7,00 mm
- Cable section: 1.5 mm2/AWG16
- Electrical Resistance @ 20°C: 12 Ohm/Km (conductor)
- Electrical Capacitance @ 1 KHz: 115 pF/mt (conductor/conductor)
- Operating temperature: -20°C / +70°C
- Minumum bending radius: 10 x overall diameter
- Weight: 136 Kg/Km
- Color: Black
- Packaging: 100 m standard carton reel
- Packaging: 300 m wooden reel (HPC610BKR300)
