SPECIFICATIONS
|

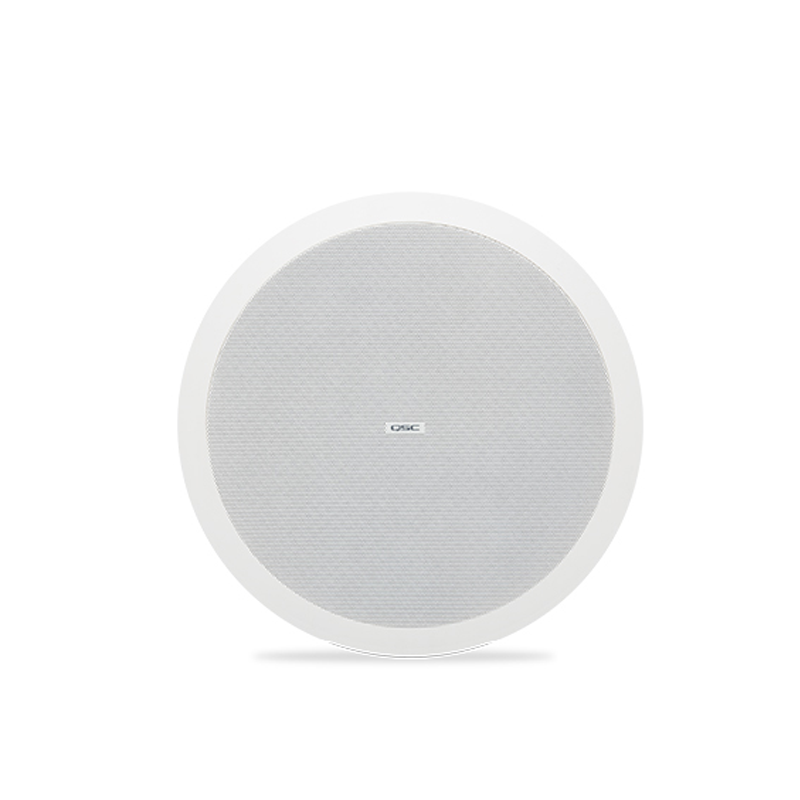

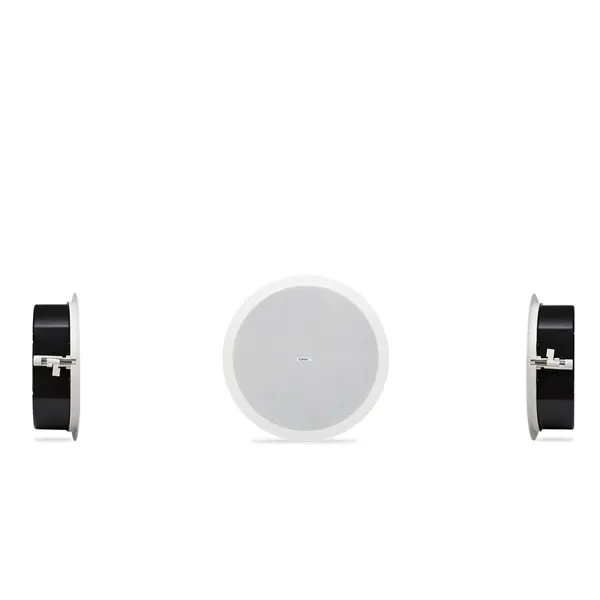

AD-C6T-LP |
| Effective frequency range1 |
65 Hz – 20 kHz |
| Rated noise power / voltage2 |
60 watts / 31 volts (rms) |
Sensitivity [dB]3
Sensitivity at 4m, 100V maximum tap |
88
?? |
| Rated coverage (-6 dB)4 |
135° conical DMT |
| Directivity factor (Q) |
6.5 |
| Directivity index (DI) [dB] |
8 |
| Maximum continuous SPL [dB]5 |
106 |
| Maximum peak SPL [dB]5 |
112 |
| Nominal impedance [ohms] |
16 |
Recommended amplifier
|
120 watts |
| Transformer taps / impedance |
16Ω (in bypass setting)
7.5W (70V); 15W (100V) Tap: 667Ω
15W (70V); 30W (100V) Tap: 333Ω
30W (70V); 60W (100V) Tap: 167Ω
60W (70V); N/A (100V) Tap: 83Ω |
| LF transducer |
165 mm [6.5-inch] weather resistant paper cone woofer |
| HF transducer |
25 mm [1-inch] aluminum dome tweeter |
| Input connector type |
Euroblock connector with parallel output |
| Enclosure material |
ABS baffle on powder coated steel back can |
| Grille material |
Powder coated steel |
| Ingress protection |
IP-34 |
| Operating environment |
Designed for indoor use |
| Operating temperature range |
-20 to 50° C [-4 to 122° F] |
| Cutout dimension |
Ø 305 mm [Ø 12-inch] |
| Net weight |
4.2 kg [9.3 lb] |
| Product dimensions (Diameter x Height) |
Ø 340 x 100 mm [Ø 13.37 x 3.95-inch] |
| Shipping weight |
13.3 kg [29.3 lb] (pair packed) |
| Shipping dimensions (H x W x D) |
178 x 864 x 470 mm [7 x 34 x 18.5-inch] (pair packed) |
| Included accessories |
C-ring and tile rails, rail screws, euroblock connector, cut-out template, tether grille |
| Optional accessories |
AD-MR8 (pre-install mud ring)
AD-CC8 (pre-install conduit cover) |
| Safety Agency |
UL1480, UL2043, NFPA90, NFPA70 suitable for use in air handling spaces. Transformer UL registered per UL1876, ROHS, C-Tick X000, CE compliant. Baffle meets UL94-V0 and UL94-5VB flammability rating; in accordance with IEC60849 / EN60849 systems. |
