Description

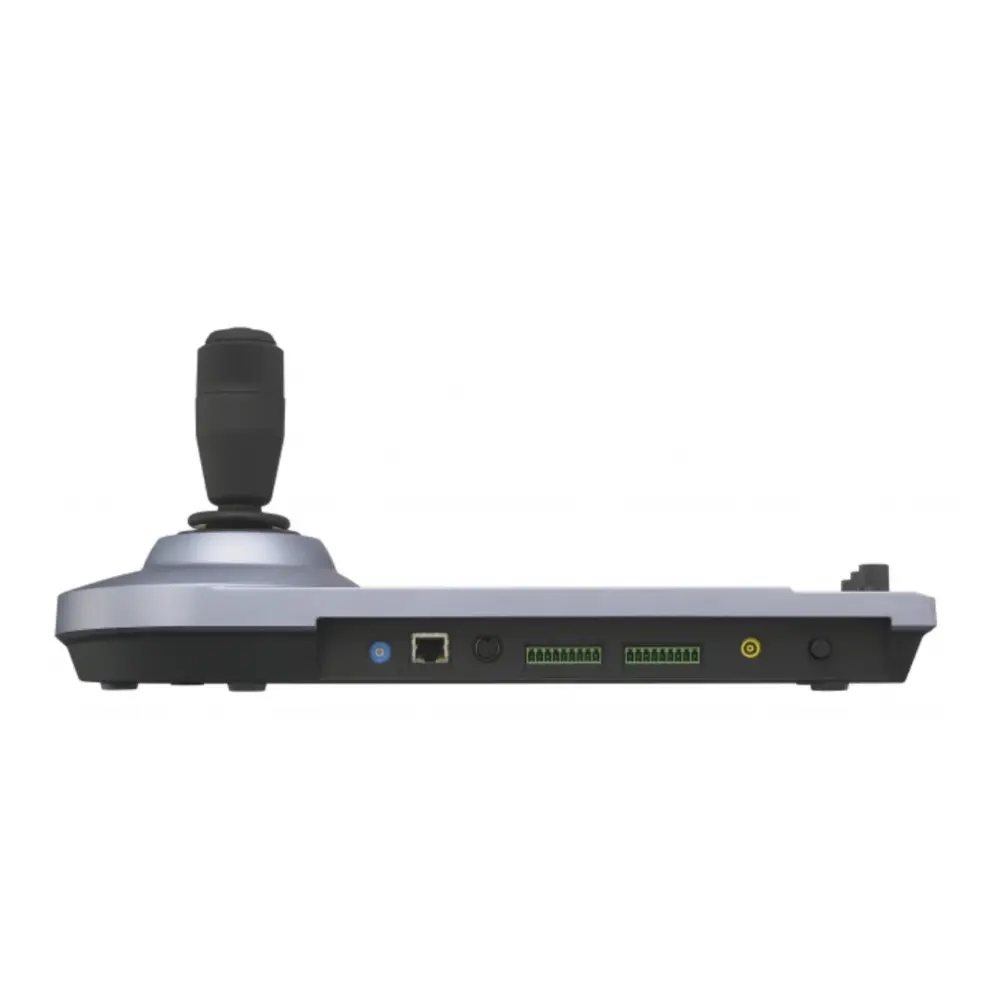

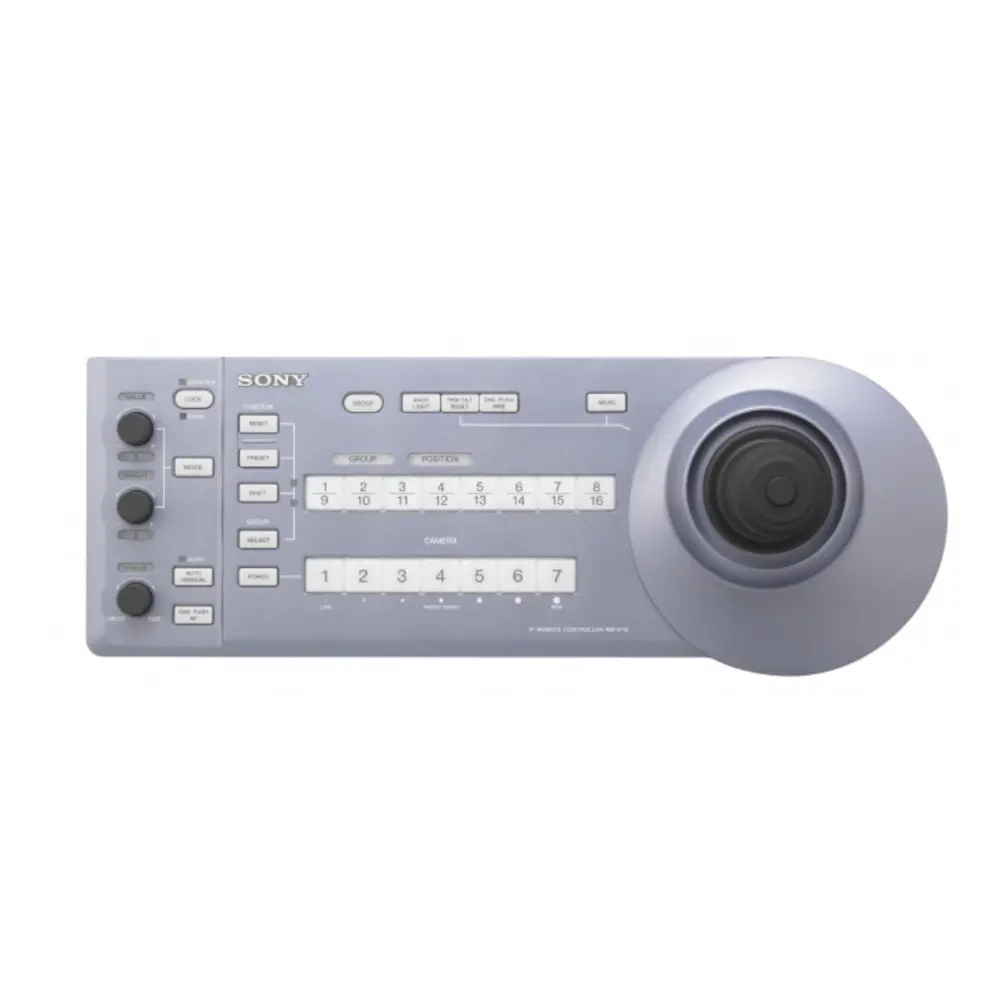

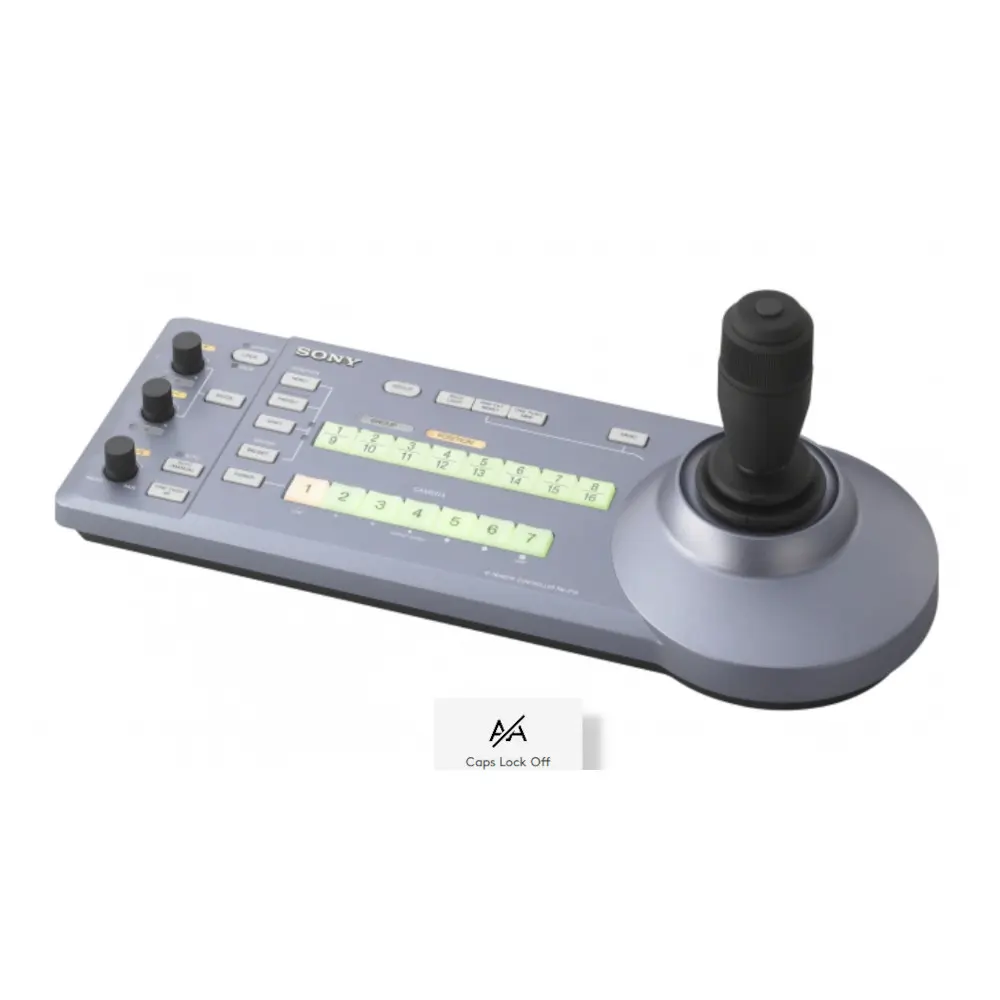

SONY RM-IP10 IP remote control panel
Control input/output : VISCA RS-232C OUT Connector : Mini DIN 8pin type
VISCA RS-422 connector: 9-pin type
LAN : RJ-45, 10BASE-T/100BASE-TX automatically detected
Tally In/Contact Out: 9-pin type
Control signal format : 9,600 bps/38,400 bps (for RS-232C/RS-422 communication)
VISCA over IP communication
Power Connector : JEITA type 4 (DC IN 12V)
Maximum IP Connections : 112
Maximum Serial Connections : 7
Control Protocol : VISCA over IP/VISCA RS-422/VISCA RS-232C switchable
