SOUNDVISION DCS-1000M เครื่องควบคุมชุดประชุมระบบไร้สาย

Description

SOUNDVISION DCS-1000M เครื่องควบคุมชุดประชุมระบบไร้สาย

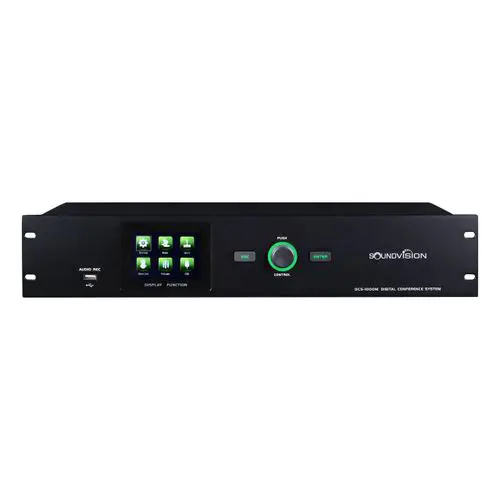

SOUNDVISION DCS-1000M เครื่องควบคุมชุดประชุมระบบไร้สาย เครื่องควบคุมรุดประชุม ระบบดีจิตอล พร้อมช่อง USB สำหรับปันทีกเสียงการพูดประชุมพร้อมกล้องติดตาม Ful! HD สูงสุด4ตัว, จอแสดงผล Touch screen แสดงสถานะฟังก์ชั่นการใช้งาน ลมารดเชื่อมต่อกับชุดประชุมสูงสุด 256 ชุด และ สามารถรองรับไมโครโฟน ชุดประชุมในระบบเดียวกัน ได้มากถึง 1200 ยู่นิต (by power extended machine.)

The DCS-1000M is a digital conference system, that combines advanced digital, network, and audio technology to provide a more comprehensive solution for an efficient modern conference system. It can communicate with smart phone systems, central control systems, and video conferencing systems.

The DCS-1000M can be connected to a maximum of 256 conference units. And can be able to support microphone up to 1200 units. Built in USB port for recording high-fidelity output. Support 4 Full HD camera automatic tracking function.

DCS-1000 Series Supports multiple meeting for:

Corporate meeting Rooms.
Government meeting room & City Council Meeting.
Education institutions.
Courtrooms.
Non-profit organizations

• • Full-function Digital Conference System Controller
  • 3.5 inch full-view IPS display and easy adjustment of system parameters.
  • The microphone can open at the same time: 1,2,3,4,5,6,7,8 and 20 microphone units.
  • High-performance switching power supply, long-distance transmission will not have any impact on sound quality.
  • Anti-interference circuit design to eliminate all interference from smart phone signals
  • The DCS-1000M can be connected to a maximum of 256 conference units. And can be able to support microphone up to 1200 units
  • Built in USB port for recording high-fidelity output.
  • Support 4 Full HD camera automatic tracking function: Equipped with “SONY VISCA, PELCOP, PELCO D” communication protocol cameras can realize automatic tracking function, can record the panorama of the venue and speakers.
  • Full remote control, remote diagnosis, and remote upgrade: Network-based collaborative management, system host can set IP address, with TCP / IP network interface, can connect to wireless router, use computer which’s in the same local area network to set the operation of the host., support Windows systems.
  • Five operational microphone modes:
  • • FIFO mode : After reaching limit number (1-8) when open new delegate microphone, the first microphones will automatic close.
    • LIMIT mode : Limit microphones (1-8) can open at the same time.
    • FREE mode : Allows up to 20 delegate speech units to be turned on at the same time, and is not limited by the “Speak Number”
    • APPLY mode : The all-delegate microphone unit can be open after only approved of the chairman.
    • VOICE mode : The delegate microphone is activated when spoken into.

Specification :
