Description

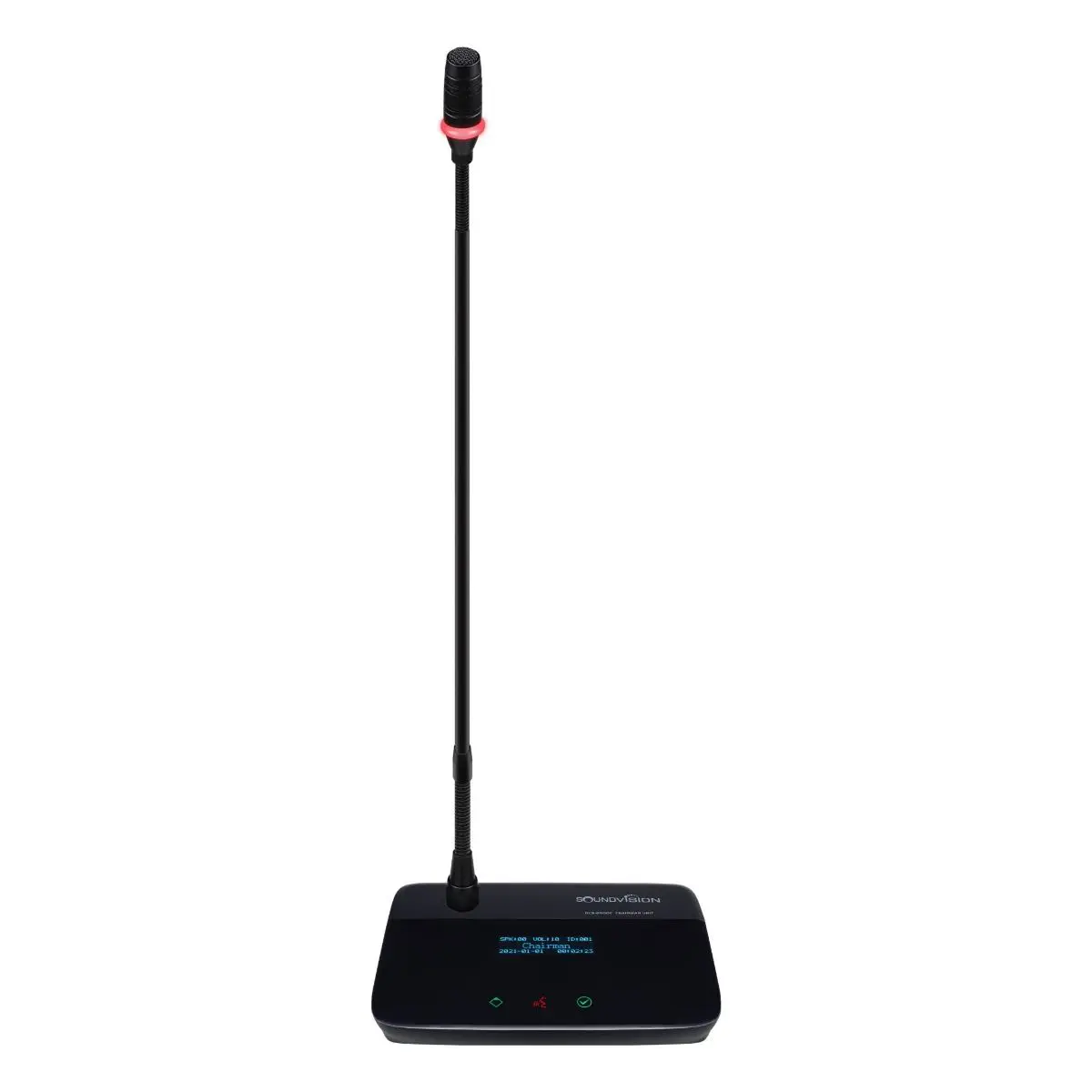

Digital Chairman Touching Discussion Unit
DCS-2000C
Digital Chairman Touching Discussion Unit
DCS-2000Discussion Unit. Digital Conference Touching Discussion Unit. sensitive touch switch OLED display content is clear, can display unit parameters, date and time, speaking volume, monitoring volume, etc. Professional high-fidelity capacitor microphone, sensitive pickup, clear voice, bandwidth up to 20Hz – 20kHz
DCS-2000 Series Supports multiple meeting for:
- Corporate meeting Rooms.
- Government meeting room & City Council Meeting.
- Education institutions.
- Courtrooms.
- Non-profit organizations.
Feature :
-
- Simple and elegant design.
- OLED display content is clear, can display unit parameters, date and time, speaking volume, monitoring volume, etc.
- Professional high-fidelity capacitor microphone, sensitive pickup, clear voice, bandwidth up to 20Hz – 20kHz
- Adopt anti-interference circuit design to prevent interference from electronic products such as smart phone.
- The microphone head has a two-color speaking light ring, the light ring is always red when the unit speaks, and the light ring is always green when the unit requests to speak.
- Sensitive touch switch, the pattern is always green light when standby, the pattern is always red light after pressing microphone with speaking timing function.
- The microphone unit has a headphone output port and a volume adjustment button, which can freely select the output mode and adjust volume.
The chairman unit:
-
- The chairman unit has the function of approving the speech request of the delegate.
- The chairman unit is not limited by the number of speakers.
- The chairman unit has the priority function of controlling the order of the conference.
- The connection position of the chairman unit is not restricted.
- A system can support the use of chairman multiple units at the same time.

Specification :
| Gooseneck Microphone | |
| Type | Condenser |
| Polar pattern | Unidirectional, Cardioid |
| Directional 0°/180° | >20 dB (1kHz) |
| Frequency response | 50Hz – 18kHz ±3dB |
| Sensitivity | -46 dBV/Pa |
| SPL | 125 dB (THD<3%) |
| Signal-to-Noise Ratio | >80 dB |
| Equivalent noise | 20 dBA (SPL) |
| Color | Black |
| Connection | 5 Pin |
| Microphone Stem length | 480mm (DGM-48 : standard) |
| – DGM-60 : 600mm (option) – DGM-70 : 700mm (option) |
|
| Chairman Unit / Delegate Unit | |
| Power Supply | DC24V |
| Frequency response | 20Hz – 20kHz |
| T.H.D | <0.05% |
| Power Consumption | 40mA |
| Interface Type | RJ-45 (CAT 6) |
| Earphone Output | 3.5mm stereo jack |
| Input Impedance | 2 KΩ |
| Installation | Desktop |
| Connection Mode | Daisy-Chain |
| General features | |
| Color | Black |
| Dimensions (W x L x H) | 185*123*44 mm |
| Weight | 0.6 kg |
