Description

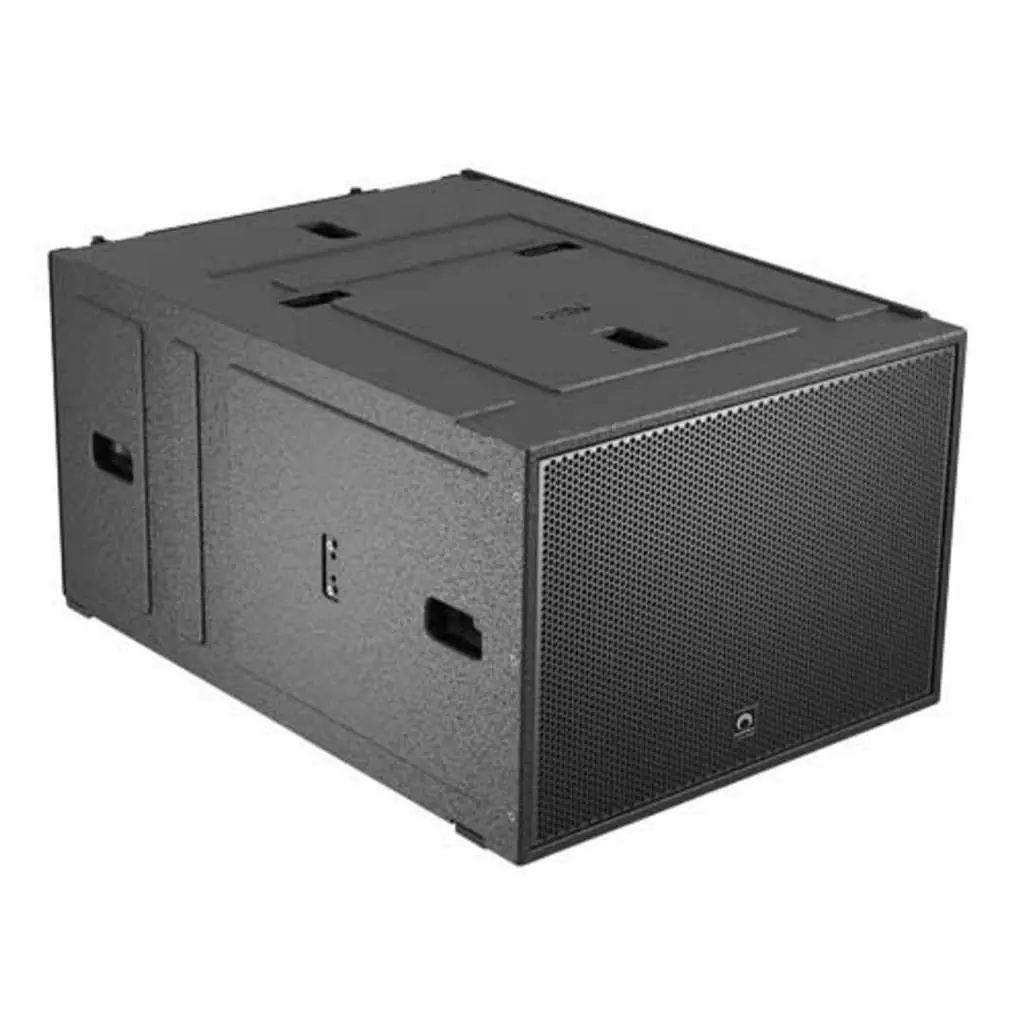

SOUNDVISION FLEXY X F-218sa
SOUNDVISION FLEXY X F-218sa ตู้ลำโพงซับวูฟเฟอร์ไลน์อาร์เรย์แอคทีฟ ขนาด 18 นิ้ว 2 ดอก มีแอมป์ Class-D ในตัว รองรับกำลังขับ 2500 วัตต์ ตอบสนองความถี่ 30 Hz – 100 Hz เหมาะสำหรับเครื่องเสียงอีเวนท์ และใช้ในงานติดตั้ง
คุณสมบัติ
- 18-inch dual active subwoofer speaker.
- Driver high quality with Two 18” (100mm Voice Coil) Ferrite.
- Designed deliver an output of high efficiency, great lower range deep frequency and excellent dynamics.
- Class-D Amplifier Module with Analog Circuit Technology.
- Huge Switching Power Supply.
- Ultra compact and solid enclosure high quality birch plywood.
- Finished with superb polyurea paint which features anti-scratch and waterproof.
- 4 lockable wheels design offers easy movement.
- Applications with ground stacked upright or crosswise with F-ONE sa and for main PA with F-ONE line array speaker as front fill system.
ข้อมูลเพิ่มเติม
| น้ำหนัก |
90 กก. |
| ขนาด |
1158 × 535 × 750 มิลลิเมตร |
| ยี่ห้อ |
SOUNDVISION |
| ดูเฉพาะ |
Active (มีแอมป์ขยาย), ใช้สาย (ไม่มีแบตเตอรี่) |
| ขนาดดอก |
ตู้ลำโพง 18 นิ้ว |
สเปค
MODEL
|
|
F-218sa
|
| Frequency Response (±3dB) |
|
30 Hz~100 Hz |
| Frequency Range (–10dB) |
|
25 Hz~120 Hz |
| Horizontal Coverage |
|
– |
| Vertical Coverage |
|
– |
| LF Power Rating (AES) |
|
1600W |
| HF Power Rating (AES) |
|
– |
| Sensitivity (@1W/1m) LF/HF |
|
101 dB |
| Maximum SPL LF/HF |
|
133 dB |
| Peak SPL LF/HF |
|
139 dB |
| Driver LF |
|
Two 18” (100mm Voice Coil.) Ferrite |
| Driver HF |
|
– |
| Connectors |
|
Neutrik XLR + POWERCON + SPEAKON |
| Connection Method |
|
– |
| Enclosure |
|
15mm, 18mm, 24mm Multilayer Birch Plywood |
| Grille |
|
Black Steel Mesh + Acoustic Transparent Cloth |
| Finish |
|
Black Polyurethane Paint |
| Riggings |
|
– |
| 2 Channels Class-D Amp Module@4Ω |
|
SUB Channel 1 |
|
SUB Channel 2 |
|
|
2500W |
|
2500W |
| THD (1Khz,Full Power 4Ω) |
|
1% |
| Signal to noise ratio |
|
103 dB |
|
103 dB |
| Active Gain (1KHz, 8Ω) |
|
32 dB |
|
32 dB |
| Input |
|
Neutrik & Male XLR & Female XLR |
| Input Impedance |
|
20K Ω Balanced / 10K Ω Unbalanced |
| Input Connection (Full-Range) |
|
– |
| Input Connection (Sub) |
|
Neutrik NL4MP (SUB: 1+1-) |
| Cooling System |
|
The airffow direction from back to front |
| Voltage Requirements |
|
200-240V ~ 50-60Hz |
| Dimensions (H x W x D) |
|
750 x 535 x 1158 mm |
| Net Weight |
|
90 kg |
